Description

DrScheme's features include:

• Source text highlighting of syntax errors
• Source text highlighting of run-time errors
• Support for multiple levels of Scheme from "beginner'' to "advanced''
• Interactive and graphical static analysis
• An object system
• A toolbox of simple drawing commands suitable for simple drawing
• An advanced graphical user interface (GUI) library.

Contents

Where to use/get DrScheme

• Where can I use DrScheme on campus?

  The current UNIX version of DrScheme is available on Strauss. You must run this version in an X11 windows evironment.

• How can I obtain DrScheme for my personal computer?

  DrScheme is available for other operating systems.  You can download a copy from the DrScheme web page.

Contents

DrScheme: Instructions

• Running DrScheme on Strauss

  DrScheme is an X-windows frontend to the entire PLT installation of Scheme. You not need to enter commands, but you must be at an Sun Ray terminal or running X server software (such as cigwin or Hummingbird Exceed) in order to use DrScheme.  If you are using a non-graphical interface (i.e., telnet or secure shell), you can only run 'mzscheme' (the underlying scheme implementation on which DrScheme is based).

  To start DrScheme use the command:

  drscheme

  Invoking DrScheme on other platforms may require a different command or may be done via an icon. On the Sun Ray terminals drsheme appears on the menu as

  Applications -> Programming -> drscheme on Strauss


  The information below will apply to all platforms.

  This will bring up an opening screen with the PLT logo and a progress bar.  If this is the first time you are running DrScheme, you will be prompted to select a spoken language (e.g. English) and a programming language - most users will want to select "Standard".  You can change either language at any time - the programming language is selected from the "Language" menu, and the spoken language is selected from the "Help" menu.  You may also be prompted to "Check for Updates".  Users on Strauss should ignore this prompt (click "Next").  If you are running DrScheme on your own PC, you can check for updates, although there probably are none if you just installed it.

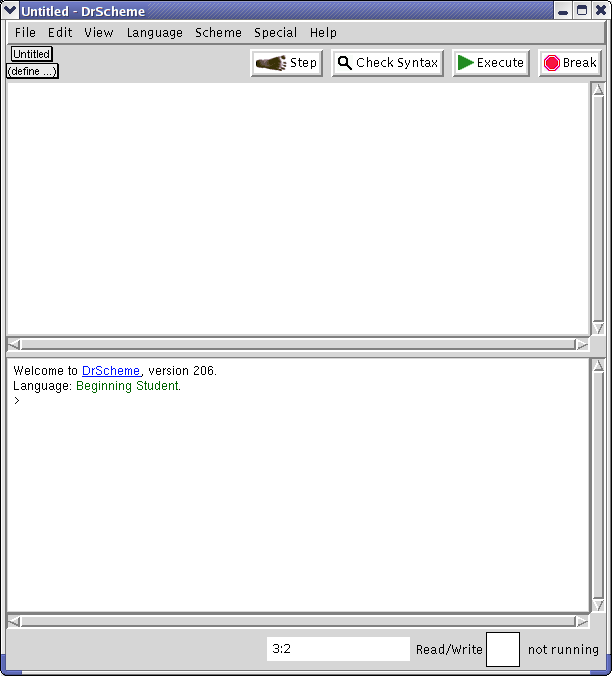

  When DrScheme finishes loading, the opening screen will be replaced by the DrScheme interactive window, which looks like this:


  (This "snapshot" was created on a Linux platform. Your screen may not look exactly like this, but it should be close.)

  The upper window is called the definitions window; the lower window is called the interactions window.

  • Enter function definitions ("programs") in the upper window and issue DrScheme commands in the lower window.  You can also load a saved listing of function definitions by selecting Open on the File menu.

  • Check for syntax errors by clicking the Check Syntax button.  (If you do not see a Check Syntax button on your screen, click on the Language menu and select one of the options that does not say without debugging.)

  • Load your function definitions into the interpreter by clicking the Execute button.

  • Invoke functions in the interactions window.

  • Save your program by clicking the Save button (or use Save Definitions or Save Definitions As... on the File menu).

  • Exit your DrScheme sesssion by selecting Quit in the File menu.

• Using command line verison - MzScheme

  PLT scheme programs can be entered on the command line in what is called listener mode. To enter listener mode type the command

  mzscheme


  In listener mode mzsheme is waiting of a scheme command. All scheme commands are enclosed in parenthesis; even the exit command to terminate your session. Here is a complete mzscheme session where a simple "hello world" program is typed and evaluated.

  bash-2.05$ mzscheme
  Welcome to MzScheme v371 [3m], Copyright (c) 2004-2007 PLT Scheme Inc.
  > (begin (display "Hello, World") (newline))
  Hello, World
  > (exit)
  bash-2.05$


  For more extensive programs you can prepare the program in any text editor for loading into a mzscheme session. Here is the simple "Hello World" example file you can name hello.scm.

  ; First scheme program

  (begin
    (display "Hello, World!")
    (newline)
  )


  To load and evaluate this program type the strauss command

  mzscheme -r hello.scm


• Preliminary Setup for PLT Scheme binaries

  The PLT Scheme distribution has more than just drscheme and mzscheme. In most cases one of these will be sufficient, but you may want to add the entire set of PLT tools to your shell path. It is best to start a shell just for PLT work and begin by executing the necessary shell commands. to add the PLT Scheme binaries to your execution path and add the PLT scheme man page directory to your man page path.

  For csh and tcsh

  setenv PATH /opt/plt/current/bin:$PATH
  setenv MANPATH /opt/plt/current/man:$MANPATH


  for sh and bash

  PATH=/opt/plt/current/bin:$PATH
  export MANPATH=/opt/plt/current/man:$MANPATH


  In this shell you can run any PLT scheme tool which are all documented in the man pages. You may want to add these commands to your dot files so you do not have to type them each time you start a new shell. After saving the modifications, log out and log in again to make the changes take effect.

• On-line Help

Click the Help menu and choose Help Desk to invoke the on-line help system.

Other Resources

For additional information, refer to the PLT (Programming Language Team) web page.
